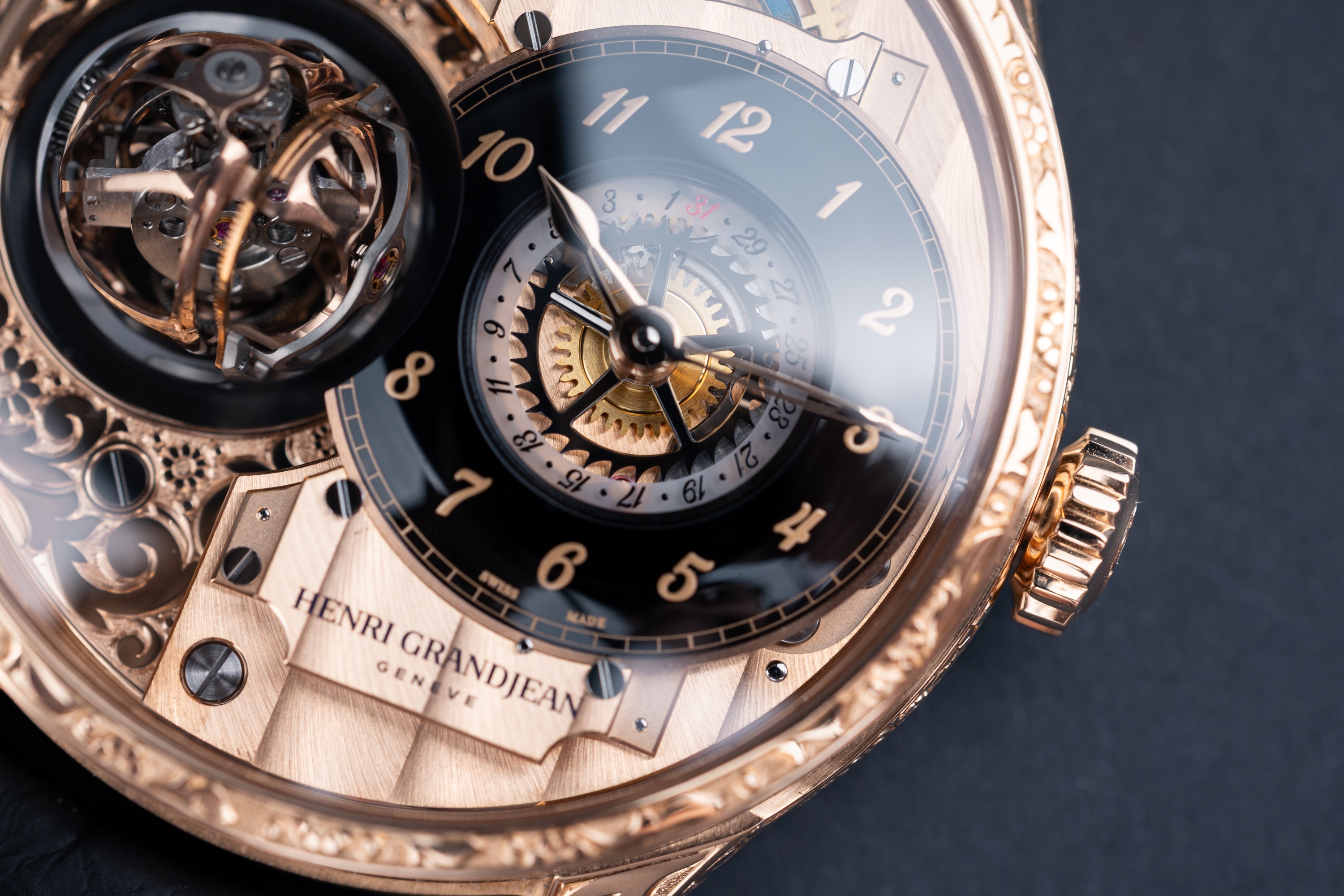

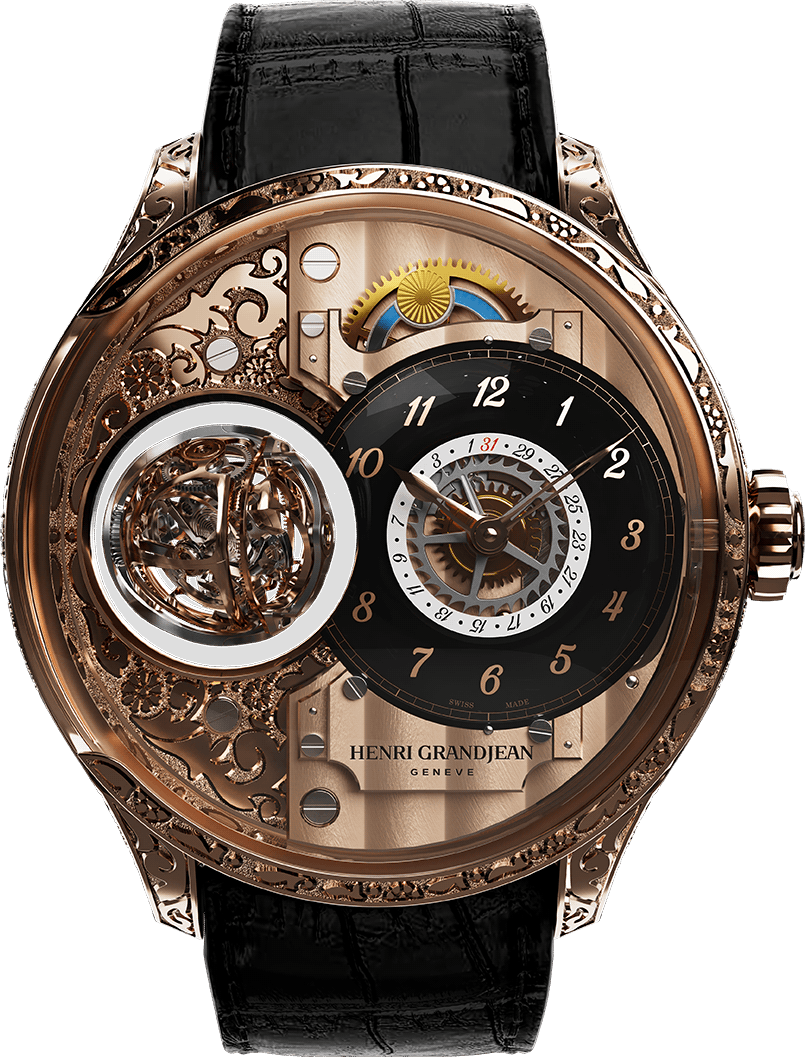

Henri Grandjean Carved Rose Gold with hand-engraved case and black onyx dial
The Magician

Carved Rose Gold

Gold shaped by hand.
Depth revealed in black.

Case5N 18K Rose Gold (Au750), carved
DialBlack Onyx - Rose gold details
TourbillonTriple-axis, 5N rose gold cages
Diameter45 mm

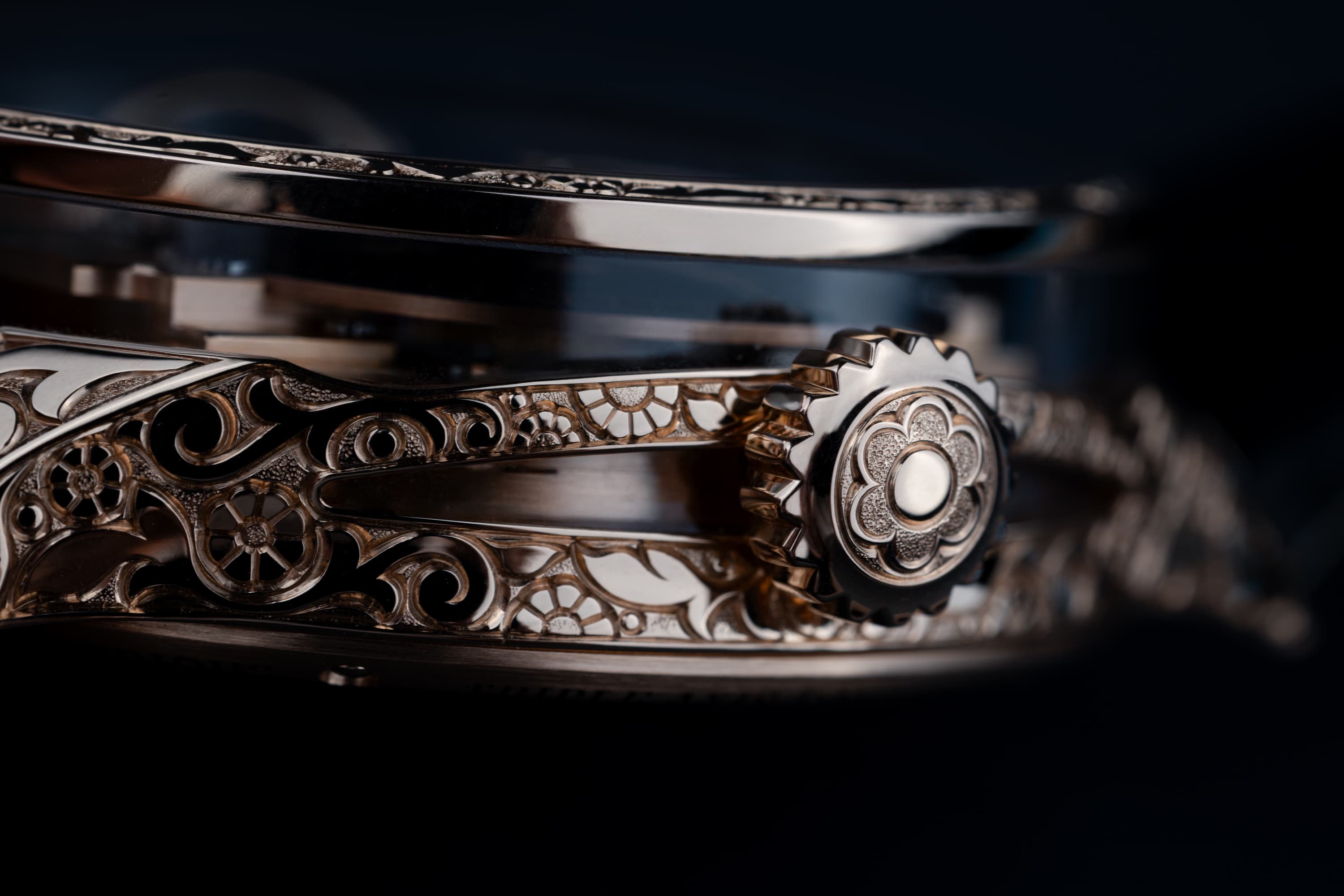

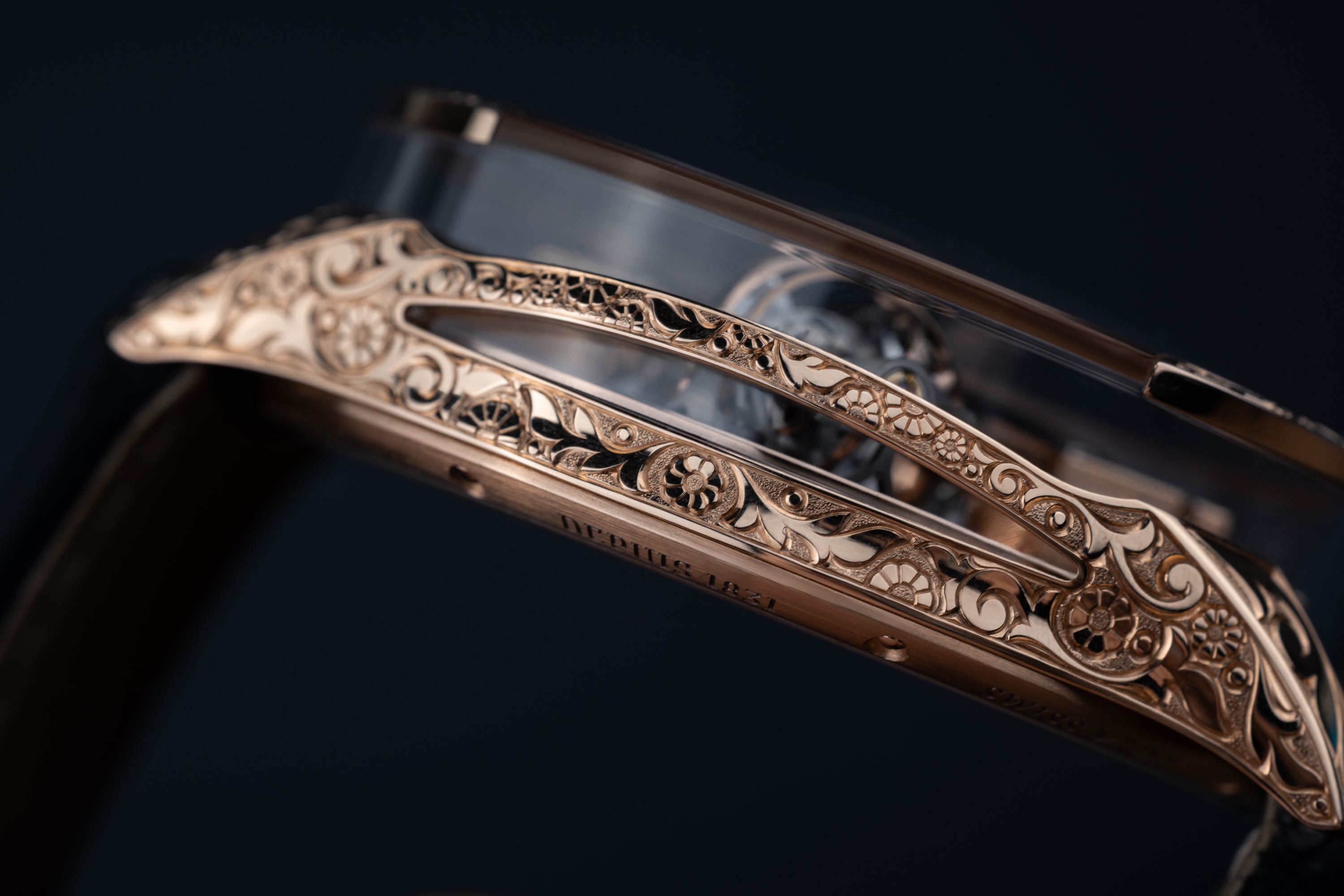

Carved rose gold case detail

The Case

Carved in 5N Rose Gold

The case is crafted in 5N 18K rose gold (Au750) and enhanced through hand carving. This additional layer of workmanship introduces texture and depth, transforming the case into a sculptural surface while preserving its architectural clarity.

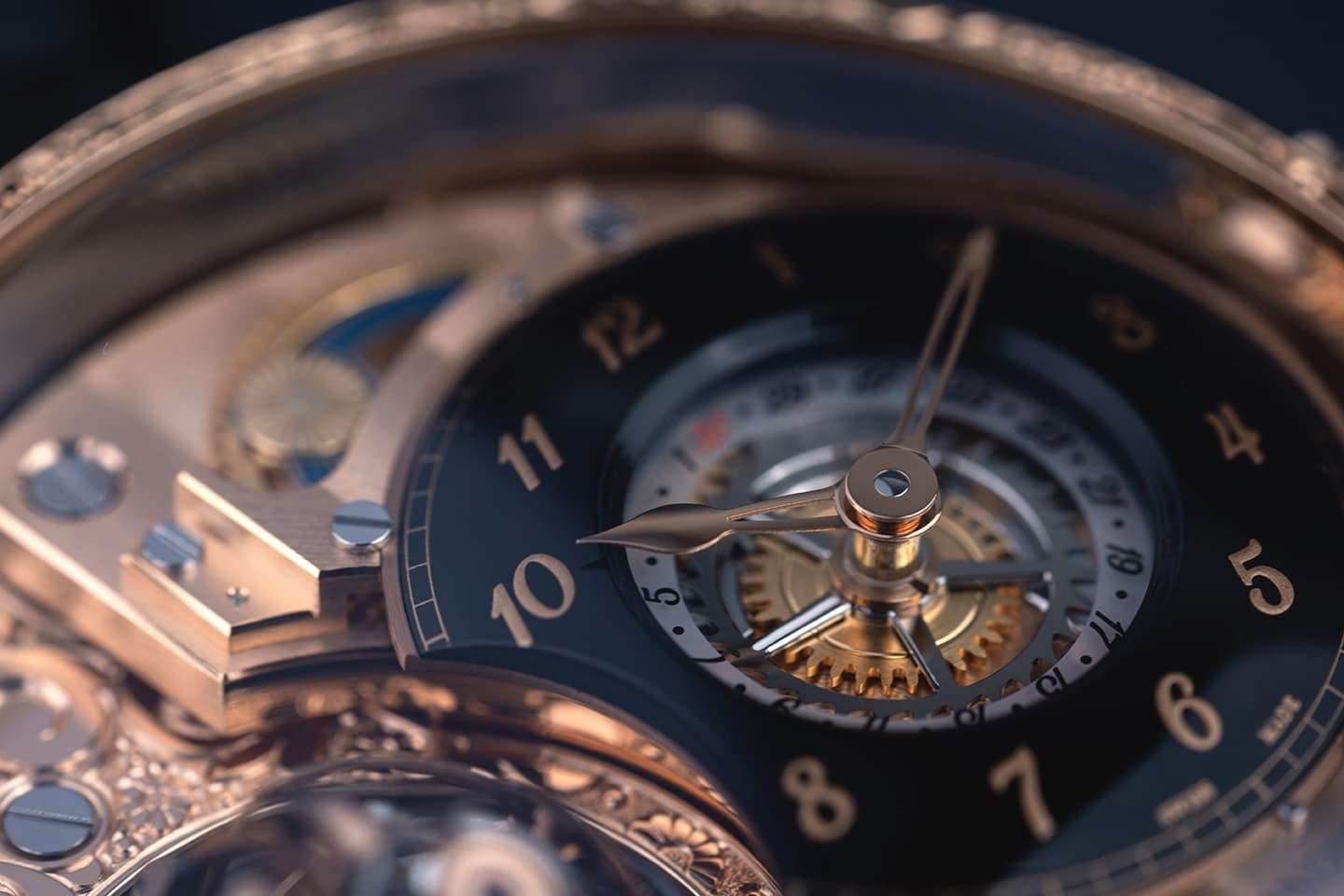

Black onyx dial with rose gold indexes

The Dial

Black Onyx

Executed in black onyx, the dial presents a dense, uniform surface with natural depth. Rose gold indexes bring warmth and precision, establishing a refined contrast against the dark mineral plane.

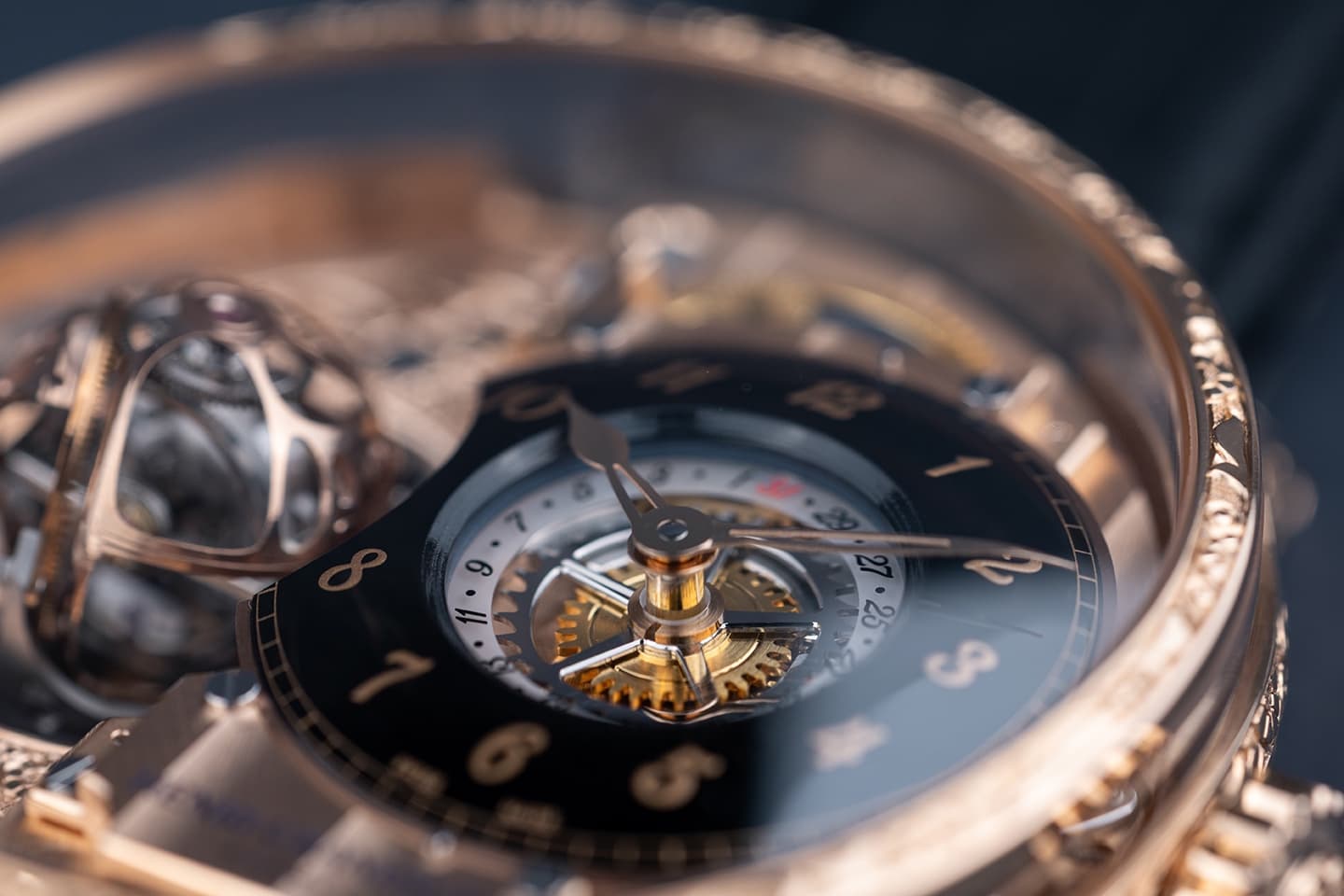

Rose gold hands detail

The Hands

Rose Gold in Motion

Crafted in rose gold, the hands feature polished, domed and lightly hammered finishes. Their warm tone reinforces the continuity between the carved rose gold case, the rose gold indexes, and the black onyx dial.

In-house calibre with 5N rose gold finishing

The Movement

A Unified Architecture, Finished in 5N

The hand-wound calibre is finished in a 5N-toned treatment, extending the chromatic language of the carved case into the movement. This continuity reinforces the coherence between exterior craftsmanship and mechanical structure.

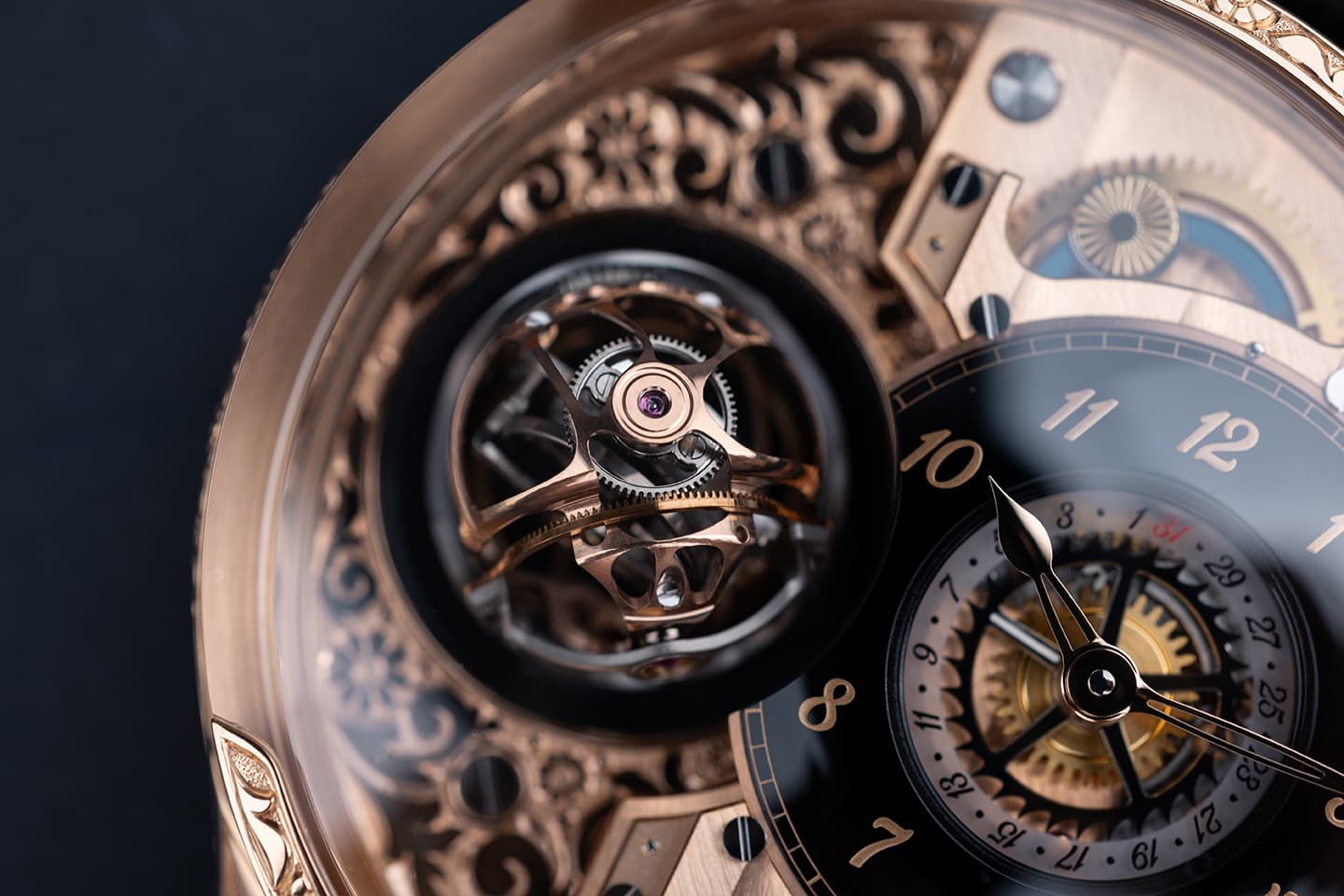

Rose gold triple-axis tourbillon cages

The Tourbillon

A Dual Expression, Finished in 5N Rose Gold

The hand-wound calibre is finished predominantly in a 5N rose gold tone, with a carved component on the left side and a 5N-finished architecture on the right. This asymmetrical treatment introduces a subtle dialogue between texture and precision within the movement.

Gallery

Details & Craftsmanship

Technical Details

Specifications

  • Material5N 18K Rose Gold (Au750), carved
  • Diameter45.00 mm
  • Thickness16.00 mm
  • Lug-to-Lug45.80 mm
  • Lug Width22.00 mm
  • CrystalSapphire crystal with anti-reflective treatment
  • Water Resistance30 metres
  • TypeMechanical, hand-wound
  • CalibreIn-house calibre
  • Regulating OrganMysterious Triple-Axis Tourbillon at 9 o'clock
  • Frequency21,600 vph (3 Hz)
  • Lift Angle52°
  • BalanceVariable inertia
  • Balance SpringFlat
  • BarrelsTwin
  • Jewels29
  • Visible Gear TrainYes
  • Winding StemManual, 2 positions (time / date)
  • Diameter38.50 mm (17''')
  • Total Height12.1 mm
  • Tourbillon Cage Diameter38.00 mm
  • Stem Height3.30 mm
  • Stem Thread DiameterS0.90
  • Movement Components218
  • External Components21

Cage Rotation Speeds

  • First Cage1 revolution / 10 seconds
  • Second Cage1 revolution / 18 seconds
  • Third Cage1 revolution / 60 seconds
  • Dial MaterialBlack Onyx
  • FinishingCircular, with stretched perimeter
  • Sapphire DiscAnti-reflective, frosted band
  • TransfersDual black and red
  • Hands5N rose gold coloured, polished, domed, hammered finish
  • Time IndicationHours and minutes
  • Central dateStar-shaped indicator
  • Day / Night Indication
  • 24-hour wheelSeparated day and night displays
  • Bridges and MainplateCôtes de Genève
  • Bevels and ChamfersHand-polished
  • WheelsCircular-finished and chamfered
